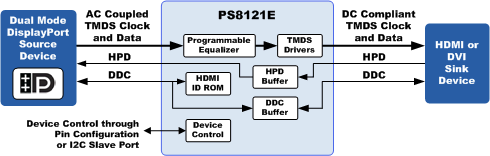

The PS8121E is a fully integrated AC to DC level shifter designed for HDMITM and DVI transmission applications. Designed for a wide variety of applications, the device is ideal for DisplayPort level-shifting cable adapter (or “dongle”) devices. It can be configured specifically for a dual mode DisplayPort to HDMI cable adapter, or a dual mode DisplayPort to DVI cable adapter. Consuming only 500mW, it can be powered directly by the DisplayPort input connection, so no other external power supply is needed.

Key Features

• Converts AC coupled HDMI or DVI signals into spec compliant DC coupled HDMI or DVI signals

• Ideal for dual mode DisplayPort to HDMI/DVI cable adapter products

• Pin selectable HDMI or DVI mode (provides HDMI ID at DDC address 0x80)

• Compliant to DisplayPort Interoperability Guideline

• Compliant to HDMI 1.4a specification with up to 2.25Gbps data rate

• Low 500mW consumption enables powering from DisplayPort connection only

• Programmable receiver equalization adjustment to compensate for PCB and/or connector losses in the input signal path

• Integrated 50Ω input termination

• Low Intra-pair and Inter-pair skew

• Built-in, bi-directional DDC active buffer with 5V tolerant interface

• Pin configurable, or I2C control option for increased flexibility and configuration

• Single 3.3V Power Supply

• 48-pin 7x7mm QFN RoHS Package

• 0°C to 70°C Operating Temperature Range

• ESD: Human Body Mode at 8kV

Applications

• Dual Mode DisplayPort to HDMI Cable Adapter

• Dual Mode DisplayPort to DVI Cable Adapter

• Format conversion on PC mother board or graphics card

• Format conversion within Notebook PC Docking Station

• AC-to-DC converter PHY for embedded HDMI/DVI transmitters

• DVD Players or Set-top boxes
