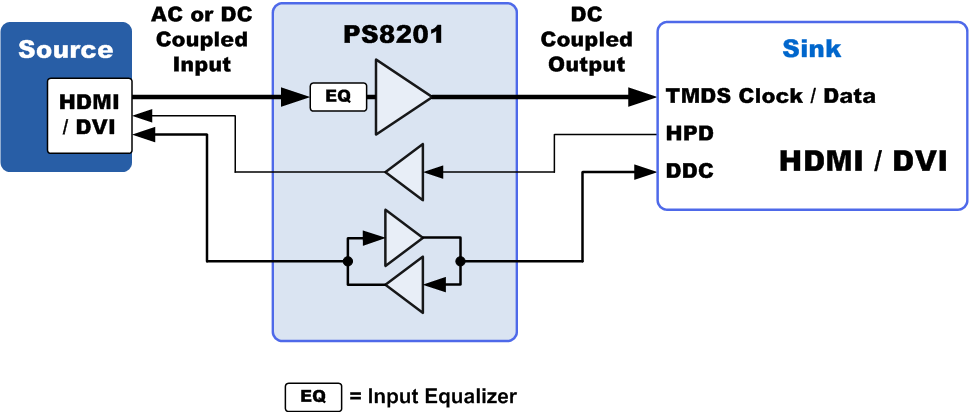

The PS8201 is a repeater for HDMI or DVI digital video interface applications.  The PS8201 can accept either DC or AC coupled TMDS clock and data inputs, allowing it to serve as a voltage level shifter for source devices that utilize a low-voltage, AC coupled HDMI or DVI transmitter.  The PS8201 outputs DC coupled HDMI/DVI signaling that is compatible with the HDMI/DVI video standards.

Features

• Compliant to the HDMI 1.4b specification with TMDS data rates up to 3.0 Gbit/sec per lane

• Supports 4k x 2k formats (24 or 30 frames per second) and 3D formats over HDMI

• AC or DC TMDS input signal coupling

• Programmable input equalizer to compensate for PCB, cable and connector losses

• Programmable TMDS output pre-emphasis

• Unique EMI reduction feature for HDMI/DVI

• Supports both DDC active signal buffering and passive switch modes for side-band signals

• Automatic power down management

• Automatic squelch for fail-safe output and power management

• Low power consumption

• Both pin and I2C device control modes for system implementation flexibility

• 3.3V and 1.5V power supplies (PS8201A) or single 3.3V power supply (PS8201B)

• 5x5mm 40-pin TQFN RoHS compliant, halogen free package

• 0 to 70 deg C operating temperature

• ESD 8kV HBM

Applications

• PC Motherboard

• Graphics Card

• Docking Station

Pin Compatibility

• PS8201A is pin compatible with the PS8401

•
