1:3 Demultiplexer for Dual-Mode DisplayPort™ Source, with Built-In Level Shifter for the HDMI™/DVI Output

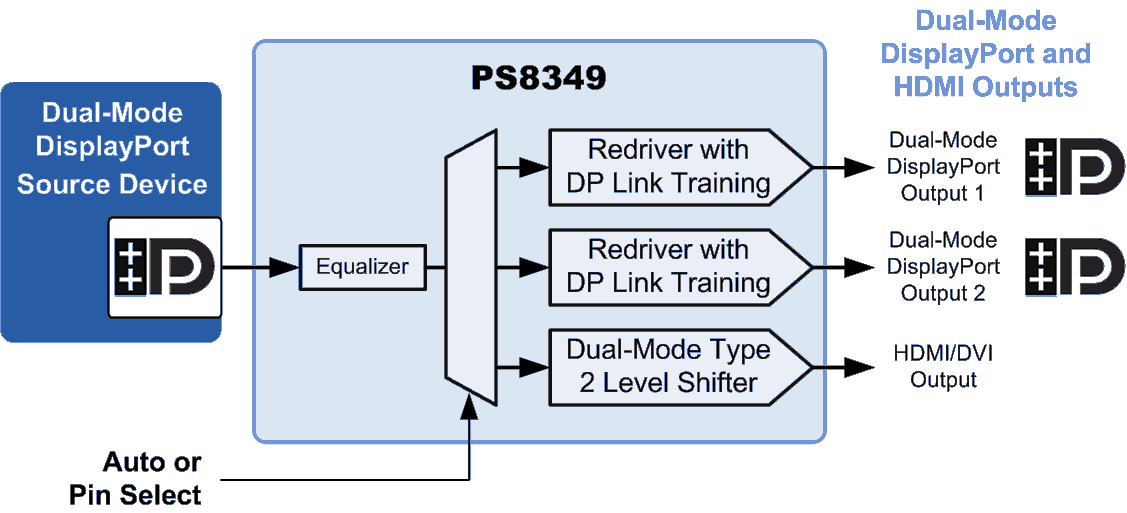

The Parade Technologies PS8349 DisplayPort Dual-Mode Source Demultiplexer accepts one Dual-Mode DisplayPort input and provides the following:

• Two selectable Dual-Mode DisplayPort outputs. Either of these outputs can drive a native DisplayPort receptacle (supporting Dual-Mode DisplayPort), can drive a eDP Sink, or can drive a configuration switch to support DisplayPort Alt Mode on a USB Type-C® connector.

• One selectable TMDS output. Utilizing the Dual-Mode function of the Source to provide TMDS data, the HDMI/DVI output can directly drive an HDMI receptical, at TMDS data rate up to 3Gbps, or a DVI receptical up to the 1.65Gbps spec limit.

Only one output can be active at a time.

APPLICATIONS

• PC Motherboards

• Docking Stations

• Graphics Cards

KEY FEATURES

• Supports Dual-mode DisplayPort De-multiplexing (supports both DisplayPort and TMDS for HDMI/DVI)

• Compliant to the VESA® DisplayPort 1.4 Standard — DisplayPort outputs supports up to 5.4Gb/s link rate (HBR2); supports up to 4K 60Hz with 4:4:4 color

• The Dual-Mode function enables support of DVI or HDMI to 3.0Gb/s TMDS data rate (300MHz TMDS clock rate) through the use of external level-shifting DP to DVI/HDMI adaptors.  Both Type 1 and Type 2 Dual-Mode HDMI adaptors are supported, enabling support up to HDMI 1.4.

• Built-in level shifter enables direct support of a DVI or HDMI receptical from the TMDS output at at 3Gbps data rate.  Type 2 adaptor registers are included.

• Built-in AUX CH and DDC combiner for Dual-Mode Source support

• DisplayPort redriver function included for both DisplayPort outputs; full link training for 1, 2 or 4 lanes

• Supports transmitter Feed Forward Equalizer (FFE) with Post Cursor 2 on HBR2

• Automatic receiver equalization compensates for signal loss between Source device and PS8349 input

• Automatic port switching with configurable port priority selection, or port switching via pin or I2C control

• Automatic power management and output selection settings

• Low power consumption

• Source initiated power saving management

• Device configurable through pin settings or I2C slave input that offers additional device options

• ESD performance 8kV Human Body Model (HBM)

• 5x10mm 66-pin QFN package, RoHS compliant and halogen free

• 0 to 85°C operation

DEVICE OPTIONS — Dual Supply or Single Supply

• PS8349A — Dual supplies, 1.5V & 3.3V

• PS8349B — Single 3.3V Supply
