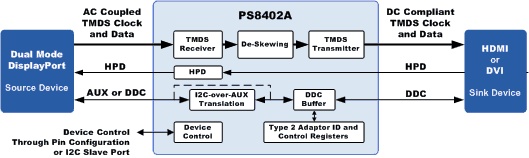

The PS8402A is an HDMI™ level shifter / repeater designed specifically for Type 2 Dual-Mode DisplayPort™ (DP++) cable adaptor applications. It is designed to be used in either a DisplayPort-to-DVI or DisplayPort-to-HDMI Type 2 adaptor. It supports up to 3.0Gbps TMDS™ data rate and integrates a jitter tolerant TMDS receiver and a jitter cleaning TMDS transmitter.
The PS8402A removes the data and clock jitter and the timing skews from the TMDS input to deliver a compliant and very low jitter HDMI output.
The PS8402A includes the I2C-over-AUX translation and registers required for Type 2 DisplayPort Dual-mode adaptor implementation. The PS8402A is backward-compatible with existing Dual-mode DP Source devices as well as newer Dual-mode Sources enabled for Type 2 adaptors. The device can also be used in motherboard, graphics board or docking applications to take advantage of Type 2 adaptor video drivers.
For applications not requiring the Type 2 adaptor registers or I2C-over-AUX translation, please refer to the PS8401.
Key Features
Compliant with VESA® Dual-Mode DisplayPort Standard, version 1, for Type 2 cable adaptor applications
Includes the required Type 2 cable adaptor identification and control registers and I2C-over-AUX translation
Compliant to HDMI 1.4b specification up to 3.0Gbps (300MHz TMDS Clock)
Supports 4K x 2K and 1080p Stereo 3D HDMI formats
Clock and Data Jitter Cleaning – 12dB Jitter Attenuation performance for out-of-band HDMI clock jitter
CrystalFree™ technology – no external crystal or reference clock is needed
AC and DC input coupling capable
Programmable receiver equalization
Programmable TMDS output pre-emphasis and EMI reduction
Automatic inter-pair and intra-pair de-skewing
Automatic power down management
Automatic output squelch circuit for fail-safe operation and power management
Flexible pin and I2C control mode options
3.3V and 1.5V power supplies
5x5mm 40-pin TQFN package
0° to 70°C operating temperature range
ESD: HBM 8 kV
Applications
Type 2 Dual-Mode DP video adaptors
PC mother board or graphics cards
Docking stations
