Overview

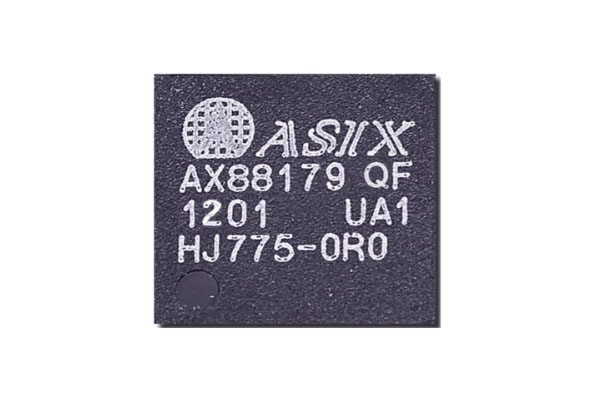

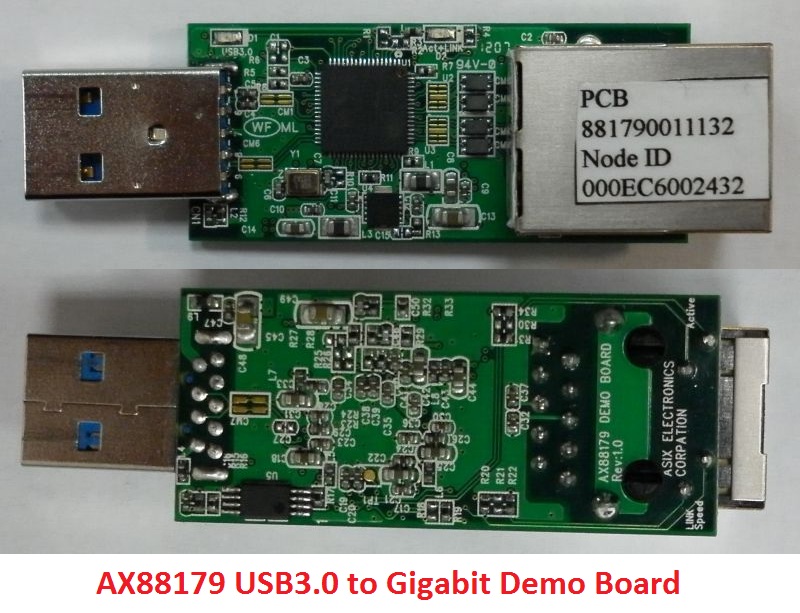

AX88179 is the world's first USB 3.0 to Gigabit Ethernet controller which integrates USB 3.0 PHY and 10/100/1000Mbps Gigabit Ethernet MAC/PHY in a single chip. The AX88179 is the latest addition to ASIX's USB-to-LAN product portfolio, providing a small form factor solution and plug-and-play usability, enabling embedded system designers to deliver Gigabit Ethernet connectivity while leveraging the growth and speed of USB 3.0 SuperSpeed technology.

The AX88179 is a high performance and highly integrated ASIC which enables a low cost, small form factor, and simple plug-and-play Gigabit Ethernet network connection capability for desktops, notebook PCs, ultrabooks, cradles/port replicators/docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port.

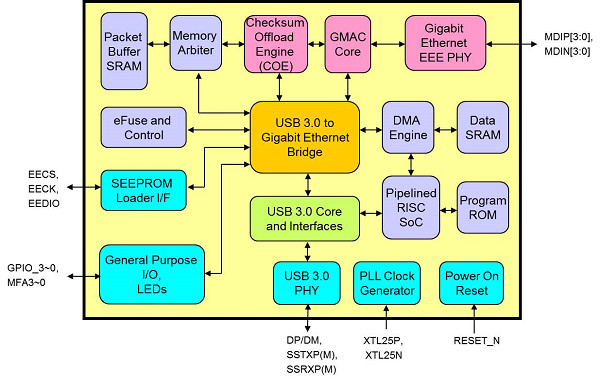

Features

● Single chip USB 3.0 to 10/100/1000M Gigabit Ethernet controller with Energy Efficient Ethernet (EEE) base on digital signal processing (DSP) technology with low dissipation

● USB Device Controller

-- Integrates on-chip USB 3.0 PHY and controller compliant to USB Spec 3.0, 2.0 and 1.1

-- Supports all USB 3.0 power saving modes (U0, U1, U2, and U3)

-- Supports USB Super/High/Full Speed modes with Bus-power or Self-power device auto-detect capability

-- High performance packet transfer rate over USB bus using proprietary burst transfer mechanism (US Patent Approval)

● Gigabit Ethernet Controller

-- Supports IEEE 802.3az (Energy Efficient Ethernet)

-- IEEE 802.3, 802.3u and 802.3ab compatible

-- Integrates 10/100/1000Mbps Gigabit Ethernet MAC/PHY

-- Supports dynamic cable length detection and dynamic power adjustment Green Ethernet (Gigabit mode only)

-- Supports parallel detection and automatic polarity correction

-- Supports crossover detection and auto- correction

-- Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation

-- Supports TCP Large Send Offload V1

-- Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control

-- Supports IEEE 802.1P Layer 2 Priority Encoding and Decoding

-- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering; received VLAN Tag (4 bytes) can be stripped off or preserved

-- Supports Jumbo frame up to 4KB

-- PHY loop-back diagnostic capability

● Support Wake-on-LAN Function

-- Supports suspend mode and remote wakeup via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin

-- Supports Bonjour wake-on-demand

● Advanced Power Management Features

-- Supports power management offload (ARP & NS)

-- Supports dynamic power management to reduce power dissipation during idle or light traffic

-- Supports AutoDetach power saving

-- Supports advanced link down power saving when Ethernet cable is unplugged

● Supports optional serial EEPROM (93c56/66) for storing USB Descriptors, Node-ID, etc.

● Supports embedded eFuse (64-byte) to store USB Device Descriptors, Node-ID, etc to save external EEPROM

● Supports automatic loading of USB Device Descriptors, Node-ID, etc. from embedded eFuse or external EEPROM after power-on initialization

● Single 25MHz clock input from either crystal or oscillator source

● Integrates on-chip power-on reset circuit

● Integrates pipelined RISC (System on a Chip, SoC) for handling protocol and control functions

● 68-pin QFN 8mm x 8mm RoHS/REACH compliant package

● Operating over 0°C to 70°C temperature rang
